•Build-in Impinj R2000 UHF RFID module.
•Provide Ethernet, RS232 & GPIO Interface.
•Mini and exquisite appearance, easily for installation.
•Embedded high speed processor, able to be self-detect errors.
•It can be used with GPIO BOX to control external devices.
•Widely applied to Intelligent Assembly Line, Distributing Center and those fields of simple RFID Detection.
| Pin Number | Pin Assigement | Description |
| Pin 1 | GPO 0 |
Driving Capacity: 20mA (max.) Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V |
| Pin 4 | GPO 1 | Driving Capacity: 20mA (max.) Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V |
| Pin 5 | GND | Ground |

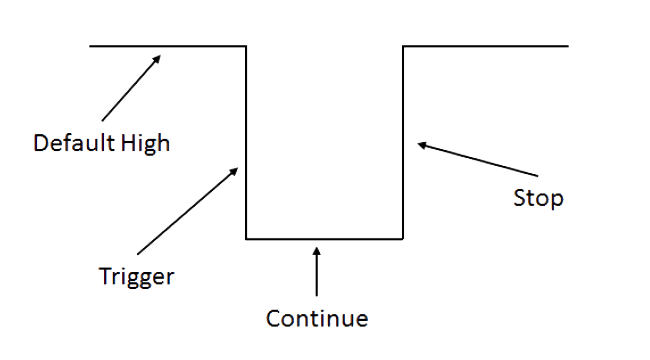

| Pin 6 | GPI 0 (can be defined as GPO 2) | GPI, Low-edge Trigger, Low Active Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V  |
| Pin 7 | GPI 1 (can be defined as GPO 3) | GPI, Low-edge Trigger Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V |
| Pin 8 | NC | NC |
| Pin 9 | +5V | Output 5V/500mA |
